对于一个刚刚创建网站，以ASP.NET MVC5为例。

我们并没有在网页的配置文件(web.config)中配置一些处理程序或模块，如处理Session的SessionStateModule模块，映射Url的UrlRoutingModule模块等。

但是我们依然可以在控制器中正常的访问Session。我们请求的url依然能正确的映射到控制器和Action。

这是因为在IIS的配置文件中ApplicationHost.config的modules 元素中注册了很多模块，这些模块供IIS承载的所有应用程序使用。

在 ApplicationHost.config 文件中注册的模块具有全局范围，因为它们为所有由 IIS 承载的 Web 应用程序而注册。

同样，在 ApplicationHost.config 文件的 globalModules 元素中定义的本机代码模块也具有全局范围。如果 Web 应用程序不需要全局模块，则可以将其禁用。

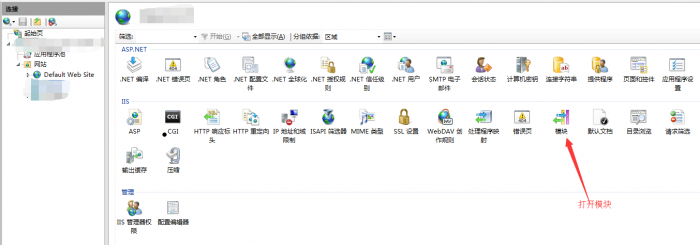

当然这也只是这个配置文件的功能的一小部分，有时我们在IIS管理器中添加的映射关系等也都会存储在这个配置文件中。

但是没有十足的把握，不要修改这个配置文件或在修改前进行备份。因为这个文件供整个IIS承载的所有应用程序使用。一些不起眼的配置节点的丢失，对某些程序可能就是致命的。

下面我们列出这个配置文件的部分内容，大家也可以再自己的电脑C盘中搜索这个文件，详细的查看其中的内容。

<!--
The <globalModules> section defines all native-code modules.
To enable a module, specify it in the <modules> section.
-->
<globalModules>
<add name="UriCacheModule" image="%IIS_BIN%cachuri.dll" />
<!-- <add name="FileCacheModule" image="%IIS_BIN%cachfile.dll" /> -->
<add name="TokenCacheModule" image="%IIS_BIN%cachtokn.dll" />
<!-- <add name="HttpCacheModule" image="%IIS_BIN%cachhttp.dll" /> -->
<add name="DynamicCompressionModule" image="%IIS_BIN%compdyn.dll" />
<add name="StaticCompressionModule" image="%IIS_BIN%compstat.dll" />
<add name="DefaultDocumentModule" image="%IIS_BIN%defdoc.dll" />
<add name="DirectoryListingModule" image="%IIS_BIN%dirlist.dll" />
<add name="ProtocolSupportModule" image="%IIS_BIN%protsup.dll" />
<add name="HttpRedirectionModule" image="%IIS_BIN%redirect.dll" />
<add name="ServerSideIncludeModule" image="%IIS_BIN%iis_ssi.dll" />
<add name="StaticFileModule" image="%IIS_BIN%static.dll" />
<add name="AnonymousAuthenticationModule" image="%IIS_BIN%authanon.dll" />
<add name="CertificateMappingAuthenticationModule" image="%IIS_BIN%authcert.dll" />
<add name="UrlAuthorizationModule" image="%IIS_BIN%urlauthz.dll" />
<add name="BasicAuthenticationModule" image="%IIS_BIN%authbas.dll" />
<add name="WindowsAuthenticationModule" image="%IIS_BIN%authsspi.dll" />
<!-- <add name="DigestAuthenticationModule" image="%IIS_BIN%authmd5.dll" /> -->
<add name="IISCertificateMappingAuthenticationModule" image="%IIS_BIN%authmap.dll" />
<add name="IpRestrictionModule" image="%IIS_BIN%iprestr.dll" />
<add name="DynamicIpRestrictionModule" image="%IIS_BIN%diprestr.dll" />
<add name="RequestFilteringModule" image="%IIS_BIN%modrqflt.dll" />
<add name="CustomLoggingModule" image="%IIS_BIN%logcust.dll" />
<add name="CustomErrorModule" image="%IIS_BIN%custerr.dll" />
<add name="HttpLoggingModule" image="%IIS_BIN%loghttp.dll" />
<!-- <add name="TracingModule" image="%IIS_BIN%iisetw.dll" /> -->
<add name="FailedRequestsTracingModule" image="%IIS_BIN%iisfreb.dll" />
<add name="RequestMonitorModule" image="%IIS_BIN%iisreqs.dll" />
<add name="IsapiModule" image="%IIS_BIN%isapi.dll" />
<add name="IsapiFilterModule" image="%IIS_BIN%filter.dll" />
<add name="CgiModule" image="%IIS_BIN%cgi.dll" />
<add name="FastCgiModule" image="%IIS_BIN%iisfcgi.dll" />
<!-- <add name="WebDAVModule" image="%IIS_BIN%webdav.dll" /> -->
<add name="RewriteModule" image="%IIS_BIN%rewrite.dll" />
<add name="ConfigurationValidationModule" image="%IIS_BIN%validcfg.dll" />
<add name="ApplicationInitializationModule" image="%IIS_BIN%warmup.dll" />
<add name="WebSocketModule" image="%IIS_BIN%iiswsock.dll" />
<add name="WebMatrixSupportModule" image="%IIS_BIN%webmatrixsup.dll" />
<add name="ManagedEngine" image="%windir%Microsoft.NETFrameworkv2.0.50727webengine.dll" preCondition="integratedMode,runtimeVersionv2.0,bitness32" />
<add name="ManagedEngine64" image="%windir%Microsoft.NETFramework64v2.0.50727webengine.dll" preCondition="integratedMode,runtimeVersionv2.0,bitness64" />
<add name="ManagedEngineV4.0_32bit" image="%windir%Microsoft.NETFrameworkv4.0.30319webengine4.dll" preCondition="integratedMode,runtimeVersionv4.0,bitness32" />
<add name="ManagedEngineV4.0_64bit" image="%windir%Microsoft.NETFramework64v4.0.30319webengine4.dll" preCondition="integratedMode,runtimeVersionv4.0,bitness64" />
</globalModules>

上面的配置节点中列出的都是本机代码模块(native-code)。大家如果要添加自己的托管代码模块(managed-code)，就添加早modules中。

然后通过环境变量去读取这些文件。他们是整个iis的基石。

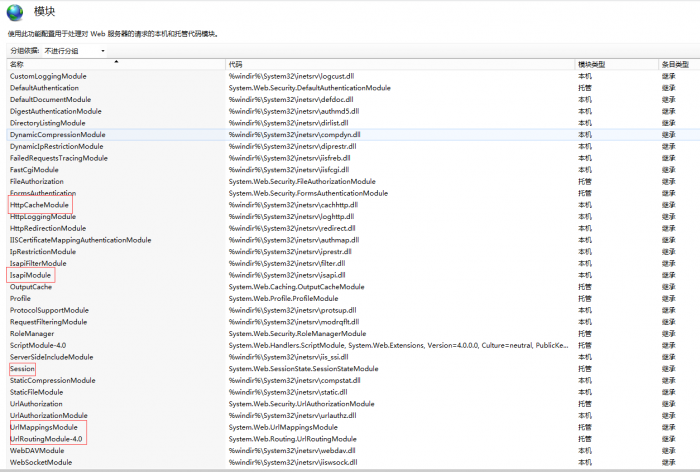

<modules>
<!--
<add name="HttpCacheModule" lockItem="true" />
-->
<add name="DynamicCompressionModule" lockItem="true" />
<add name="StaticCompressionModule" lockItem="true" />
<add name="DefaultDocumentModule" lockItem="true" />
<add name="DirectoryListingModule" lockItem="true" />
<add name="IsapiFilterModule" lockItem="true" />
<add name="ProtocolSupportModule" lockItem="true" />
<add name="HttpRedirectionModule" lockItem="true" />
<add name="ServerSideIncludeModule" lockItem="true" />
<add name="StaticFileModule" lockItem="true" />
<add name="AnonymousAuthenticationModule" lockItem="true" />
<add name="CertificateMappingAuthenticationModule" lockItem="true" />
<add name="UrlAuthorizationModule" lockItem="true" />
<add name="BasicAuthenticationModule" lockItem="true" />
<add name="WindowsAuthenticationModule" lockItem="true" />
<!--
<add name="DigestAuthenticationModule" lockItem="true" />
-->
<add name="IISCertificateMappingAuthenticationModule" lockItem="true" />
<add name="WebMatrixSupportModule" lockItem="true" />
<add name="IpRestrictionModule" lockItem="true" />
<add name="DynamicIpRestrictionModule" lockItem="true" />
<add name="RequestFilteringModule" lockItem="true" />
<add name="CustomLoggingModule" lockItem="true" />
<add name="CustomErrorModule" lockItem="true" />
<add name="IsapiModule" lockItem="true" />
<add name="HttpLoggingModule" lockItem="true" />
<add name="FailedRequestsTracingModule" lockItem="true" />
<add name="CgiModule" lockItem="true" />
<add name="FastCgiModule" lockItem="true" />
<!-- <add name="WebDAVModule" /> -->
<add name="RewriteModule" />
<add name="OutputCache" type="System.Web.Caching.OutputCacheModule" preCondition="managedHandler" />
<add name="Session" type="System.Web.SessionState.SessionStateModule" preCondition="managedHandler" />
<add name="WindowsAuthentication" type="System.Web.Security.WindowsAuthenticationModule" preCondition="managedHandler" />
<add name="FormsAuthentication" type="System.Web.Security.FormsAuthenticationModule" preCondition="managedHandler" />
<add name="DefaultAuthentication" type="System.Web.Security.DefaultAuthenticationModule" preCondition="managedHandler" />
<add name="RoleManager" type="System.Web.Security.RoleManagerModule" preCondition="managedHandler" />
<add name="UrlAuthorization" type="System.Web.Security.UrlAuthorizationModule" preCondition="managedHandler" />
<add name="FileAuthorization" type="System.Web.Security.FileAuthorizationModule" preCondition="managedHandler" />
<add name="AnonymousIdentification" type="System.Web.Security.AnonymousIdentificationModule" preCondition="managedHandler" />
<add name="Profile" type="System.Web.Profile.ProfileModule" preCondition="managedHandler" />
<add name="UrlMappingsModule" type="System.Web.UrlMappingsModule" preCondition="managedHandler" />
<add name="ApplicationInitializationModule" lockItem="true" />
<add name="WebSocketModule" lockItem="true" />
<add name="ServiceModel-4.0" type="System.ServiceModel.Activation.ServiceHttpModule,System.ServiceModel.Activation,Version=4.0.0.0,Culture=neutral,PublicKeyToken=31bf3856ad364e35" preCondition="managedHandler,runtimeVersionv4.0" />
<add name="ConfigurationValidationModule" lockItem="true" />
<add name="UrlRoutingModule-4.0" type="System.Web.Routing.UrlRoutingModule" preCondition="managedHandler,runtimeVersionv4.0" />
<add name="ScriptModule-4.0" type="System.Web.Handlers.ScriptModule, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="managedHandler,runtimeVersionv4.0" />
<add name="ServiceModel" type="System.ServiceModel.Activation.HttpModule, System.ServiceModel, Version=3.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" preCondition="managedHandler,runtimeVersionv2.0" />
</modules>

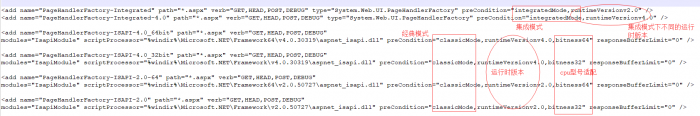

<handlers accessPolicy="Read, Script">
<!-- <add name="WebDAV" path="*" verb="PROPFIND,PROPPATCH,MKCOL,PUT,COPY,DELETE,MOVE,LOCK,UNLOCK" modules="WebDAVModule" resourceType="Unspecified" requireAccess="None" /> -->
<add name="AXD-ISAPI-4.0_64bit" path="*.axd" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="PageHandlerFactory-ISAPI-4.0_64bit" path="*.aspx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="SimpleHandlerFactory-ISAPI-4.0_64bit" path="*.ashx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="WebServiceHandlerFactory-ISAPI-4.0_64bit" path="*.asmx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-rem-ISAPI-4.0_64bit" path="*.rem" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-soap-ISAPI-4.0_64bit" path="*.soap" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="svc-ISAPI-4.0_64bit" path="*.svc" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" />
<add name="rules-ISAPI-4.0_64bit" path="*.rules" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" />
<add name="xoml-ISAPI-4.0_64bit" path="*.xoml" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" />
<add name="xamlx-ISAPI-4.0_64bit" path="*.xamlx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" />
<add name="aspq-ISAPI-4.0_64bit" path="*.aspq" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="cshtm-ISAPI-4.0_64bit" path="*.cshtm" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="cshtml-ISAPI-4.0_64bit" path="*.cshtml" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="vbhtm-ISAPI-4.0_64bit" path="*.vbhtm" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="vbhtml-ISAPI-4.0_64bit" path="*.vbhtml" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="svc-Integrated" path="*.svc" verb="*" type="System.ServiceModel.Activation.HttpHandler, System.ServiceModel, Version=3.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="svc-ISAPI-2.0" path="*.svc" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" />
<add name="xoml-Integrated" path="*.xoml" verb="*" type="System.ServiceModel.Activation.HttpHandler, System.ServiceModel, Version=3.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="xoml-ISAPI-2.0" path="*.xoml" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" />
<add name="rules-Integrated" path="*.rules" verb="*" type="System.ServiceModel.Activation.HttpHandler, System.ServiceModel, Version=3.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="rules-ISAPI-2.0" path="*.rules" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" />
<add name="AXD-ISAPI-4.0_32bit" path="*.axd" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="PageHandlerFactory-ISAPI-4.0_32bit" path="*.aspx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="SimpleHandlerFactory-ISAPI-4.0_32bit" path="*.ashx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="WebServiceHandlerFactory-ISAPI-4.0_32bit" path="*.asmx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-rem-ISAPI-4.0_32bit" path="*.rem" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-soap-ISAPI-4.0_32bit" path="*.soap" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="svc-ISAPI-4.0_32bit" path="*.svc" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" />
<add name="rules-ISAPI-4.0_32bit" path="*.rules" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" />
<add name="xoml-ISAPI-4.0_32bit" path="*.xoml" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" />
<add name="xamlx-ISAPI-4.0_32bit" path="*.xamlx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" />
<add name="aspq-ISAPI-4.0_32bit" path="*.aspq" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="cshtm-ISAPI-4.0_32bit" path="*.cshtm" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="cshtml-ISAPI-4.0_32bit" path="*.cshtml" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="vbhtm-ISAPI-4.0_32bit" path="*.vbhtm" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="vbhtml-ISAPI-4.0_32bit" path="*.vbhtml" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="TraceHandler-Integrated-4.0" path="trace.axd" verb="GET,HEAD,POST,DEBUG" type="System.Web.Handlers.TraceHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="WebAdminHandler-Integrated-4.0" path="WebAdmin.axd" verb="GET,DEBUG" type="System.Web.Handlers.WebAdminHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="AssemblyResourceLoader-Integrated-4.0" path="WebResource.axd" verb="GET,DEBUG" type="System.Web.Handlers.AssemblyResourceLoader" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="PageHandlerFactory-Integrated-4.0" path="*.aspx" verb="GET,HEAD,POST,DEBUG" type="System.Web.UI.PageHandlerFactory" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="SimpleHandlerFactory-Integrated-4.0" path="*.ashx" verb="GET,HEAD,POST,DEBUG" type="System.Web.UI.SimpleHandlerFactory" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="WebServiceHandlerFactory-Integrated-4.0" path="*.asmx" verb="GET,HEAD,POST,DEBUG" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="HttpRemotingHandlerFactory-rem-Integrated-4.0" path="*.rem" verb="GET,HEAD,POST,DEBUG" type="System.Runtime.Remoting.Channels.Http.HttpRemotingHandlerFactory, System.Runtime.Remoting, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="HttpRemotingHandlerFactory-soap-Integrated-4.0" path="*.soap" verb="GET,HEAD,POST,DEBUG" type="System.Runtime.Remoting.Channels.Http.HttpRemotingHandlerFactory, System.Runtime.Remoting, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="svc-Integrated-4.0" path="*.svc" verb="*" type="System.ServiceModel.Activation.ServiceHttpHandlerFactory, System.ServiceModel.Activation, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="rules-Integrated-4.0" path="*.rules" verb="*" type="System.ServiceModel.Activation.ServiceHttpHandlerFactory, System.ServiceModel.Activation, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="xoml-Integrated-4.0" path="*.xoml" verb="*" type="System.ServiceModel.Activation.ServiceHttpHandlerFactory, System.ServiceModel.Activation, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="xamlx-Integrated-4.0" path="*.xamlx" verb="GET,HEAD,POST,DEBUG" type="System.Xaml.Hosting.XamlHttpHandlerFactory, System.Xaml.Hosting, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="aspq-Integrated-4.0" path="*.aspq" verb="GET,HEAD,POST,DEBUG" type="System.Web.HttpForbiddenHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="cshtm-Integrated-4.0" path="*.cshtm" verb="GET,HEAD,POST,DEBUG" type="System.Web.HttpForbiddenHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="cshtml-Integrated-4.0" path="*.cshtml" verb="GET,HEAD,POST,DEBUG" type="System.Web.HttpForbiddenHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="vbhtm-Integrated-4.0" path="*.vbhtm" verb="GET,HEAD,POST,DEBUG" type="System.Web.HttpForbiddenHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="vbhtml-Integrated-4.0" path="*.vbhtml" verb="GET,HEAD,POST,DEBUG" type="System.Web.HttpForbiddenHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="ScriptHandlerFactoryAppServices-Integrated-4.0" path="*_AppService.axd" verb="*" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="ScriptResourceIntegrated-4.0" path="*ScriptResource.axd" verb="GET,HEAD" type="System.Web.Handlers.ScriptResourceHandler, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="ASPClassic" path="*.asp" verb="GET,HEAD,POST" modules="IsapiModule" scriptProcessor="%IIS_BIN%asp.dll" resourceType="File" />
<add name="SecurityCertificate" path="*.cer" verb="GET,HEAD,POST" modules="IsapiModule" scriptProcessor="%IIS_BIN%asp.dll" resourceType="File" />
<add name="ISAPI-dll" path="*.dll" verb="*" modules="IsapiModule" resourceType="File" requireAccess="Execute" allowPathInfo="true" />
<add name="TraceHandler-Integrated" path="trace.axd" verb="GET,HEAD,POST,DEBUG" type="System.Web.Handlers.TraceHandler" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="WebAdminHandler-Integrated" path="WebAdmin.axd" verb="GET,DEBUG" type="System.Web.Handlers.WebAdminHandler" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="AssemblyResourceLoader-Integrated" path="WebResource.axd" verb="GET,DEBUG" type="System.Web.Handlers.AssemblyResourceLoader" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="PageHandlerFactory-Integrated" path="*.aspx" verb="GET,HEAD,POST,DEBUG" type="System.Web.UI.PageHandlerFactory" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="SimpleHandlerFactory-Integrated" path="*.ashx" verb="GET,HEAD,POST,DEBUG" type="System.Web.UI.SimpleHandlerFactory" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="WebServiceHandlerFactory-Integrated" path="*.asmx" verb="GET,HEAD,POST,DEBUG" type="System.Web.Services.Protocols.WebServiceHandlerFactory,System.Web.Services,Version=2.0.0.0,Culture=neutral,PublicKeyToken=b03f5f7f11d50a3a" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="HttpRemotingHandlerFactory-rem-Integrated" path="*.rem" verb="GET,HEAD,POST,DEBUG" type="System.Runtime.Remoting.Channels.Http.HttpRemotingHandlerFactory,System.Runtime.Remoting,Version=2.0.0.0,Culture=neutral,PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="HttpRemotingHandlerFactory-soap-Integrated" path="*.soap" verb="GET,HEAD,POST,DEBUG" type="System.Runtime.Remoting.Channels.Http.HttpRemotingHandlerFactory,System.Runtime.Remoting,Version=2.0.0.0,Culture=neutral,PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="AXD-ISAPI-2.0" path="*.axd" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" responseBufferLimit="0" />
<add name="PageHandlerFactory-ISAPI-2.0" path="*.aspx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" responseBufferLimit="0" />
<add name="SimpleHandlerFactory-ISAPI-2.0" path="*.ashx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" responseBufferLimit="0" />
<add name="WebServiceHandlerFactory-ISAPI-2.0" path="*.asmx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-rem-ISAPI-2.0" path="*.rem" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-soap-ISAPI-2.0" path="*.soap" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" responseBufferLimit="0" />
<add name="svc-ISAPI-2.0-64" path="*.svc" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" />
<add name="AXD-ISAPI-2.0-64" path="*.axd" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" responseBufferLimit="0" />
<add name="PageHandlerFactory-ISAPI-2.0-64" path="*.aspx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" responseBufferLimit="0" />
<add name="SimpleHandlerFactory-ISAPI-2.0-64" path="*.ashx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" responseBufferLimit="0" />
<add name="WebServiceHandlerFactory-ISAPI-2.0-64" path="*.asmx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-rem-ISAPI-2.0-64" path="*.rem" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-soap-ISAPI-2.0-64" path="*.soap" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" responseBufferLimit="0" />
<add name="rules-64-ISAPI-2.0" path="*.rules" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" />
<add name="xoml-64-ISAPI-2.0" path="*.xoml" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" />
<add name="CGI-exe" path="*.exe" verb="*" modules="CgiModule" resourceType="File" requireAccess="Execute" allowPathInfo="true" /> <add name="SSINC-stm" path="*.stm" verb="GET,HEAD,POST" modules="ServerSideIncludeModule" resourceType="File" />
<add name="SSINC-shtm" path="*.shtm" verb="GET,HEAD,POST" modules="ServerSideIncludeModule" resourceType="File" />
<add name="SSINC-shtml" path="*.shtml" verb="GET,HEAD,POST" modules="ServerSideIncludeModule" resourceType="File" />
<add name="TRACEVerbHandler" path="*" verb="TRACE" modules="ProtocolSupportModule" requireAccess="None" />
<add name="OPTIONSVerbHandler" path="*" verb="OPTIONS" modules="ProtocolSupportModule" requireAccess="None" />
<add name="ExtensionlessUrl-ISAPI-4.0_32bit" path="*." verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="ExtensionlessUrlHandler-ISAPI-4.0_64bit" path="*." verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="ExtensionlessUrl-Integrated-4.0" path="*." verb="GET,HEAD,POST,DEBUG" type="System.Web.Handlers.TransferRequestHandler" preCondition="integratedMode,runtimeVersionv4.0" responseBufferLimit="0" />
<add name="StaticFile" path="*" verb="*" modules="StaticFileModule,DefaultDocumentModule,DirectoryListingModule" resourceType="Either" requireAccess="Read" />
</handlers>

上面的配置节点中，列出的既有本机代码模块(native-code)，也有托管代码模块(managed-code)。

<handlers accessPolicy="Read, Script">
<!-- <add name="WebDAV" path="*" verb="PROPFIND,PROPPATCH,MKCOL,PUT,COPY,DELETE,MOVE,LOCK,UNLOCK" modules="WebDAVModule" resourceType="Unspecified" requireAccess="None" /> -->
<add name="AXD-ISAPI-4.0_64bit" path="*.axd" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="PageHandlerFactory-ISAPI-4.0_64bit" path="*.aspx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="SimpleHandlerFactory-ISAPI-4.0_64bit" path="*.ashx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="WebServiceHandlerFactory-ISAPI-4.0_64bit" path="*.asmx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-rem-ISAPI-4.0_64bit" path="*.rem" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-soap-ISAPI-4.0_64bit" path="*.soap" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="svc-ISAPI-4.0_64bit" path="*.svc" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" />
<add name="rules-ISAPI-4.0_64bit" path="*.rules" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" />
<add name="xoml-ISAPI-4.0_64bit" path="*.xoml" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" />
<add name="xamlx-ISAPI-4.0_64bit" path="*.xamlx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" />
<add name="aspq-ISAPI-4.0_64bit" path="*.aspq" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="cshtm-ISAPI-4.0_64bit" path="*.cshtm" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="cshtml-ISAPI-4.0_64bit" path="*.cshtml" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="vbhtm-ISAPI-4.0_64bit" path="*.vbhtm" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="vbhtml-ISAPI-4.0_64bit" path="*.vbhtml" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="svc-Integrated" path="*.svc" verb="*" type="System.ServiceModel.Activation.HttpHandler, System.ServiceModel, Version=3.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="svc-ISAPI-2.0" path="*.svc" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" />
<add name="xoml-Integrated" path="*.xoml" verb="*" type="System.ServiceModel.Activation.HttpHandler, System.ServiceModel, Version=3.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="xoml-ISAPI-2.0" path="*.xoml" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" />
<add name="rules-Integrated" path="*.rules" verb="*" type="System.ServiceModel.Activation.HttpHandler, System.ServiceModel, Version=3.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="rules-ISAPI-2.0" path="*.rules" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" />
<add name="AXD-ISAPI-4.0_32bit" path="*.axd" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="PageHandlerFactory-ISAPI-4.0_32bit" path="*.aspx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="SimpleHandlerFactory-ISAPI-4.0_32bit" path="*.ashx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="WebServiceHandlerFactory-ISAPI-4.0_32bit" path="*.asmx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-rem-ISAPI-4.0_32bit" path="*.rem" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-soap-ISAPI-4.0_32bit" path="*.soap" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="svc-ISAPI-4.0_32bit" path="*.svc" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" />
<add name="rules-ISAPI-4.0_32bit" path="*.rules" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" />
<add name="xoml-ISAPI-4.0_32bit" path="*.xoml" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" />
<add name="xamlx-ISAPI-4.0_32bit" path="*.xamlx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" />
<add name="aspq-ISAPI-4.0_32bit" path="*.aspq" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="cshtm-ISAPI-4.0_32bit" path="*.cshtm" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="cshtml-ISAPI-4.0_32bit" path="*.cshtml" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="vbhtm-ISAPI-4.0_32bit" path="*.vbhtm" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="vbhtml-ISAPI-4.0_32bit" path="*.vbhtml" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="TraceHandler-Integrated-4.0" path="trace.axd" verb="GET,HEAD,POST,DEBUG" type="System.Web.Handlers.TraceHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="WebAdminHandler-Integrated-4.0" path="WebAdmin.axd" verb="GET,DEBUG" type="System.Web.Handlers.WebAdminHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="AssemblyResourceLoader-Integrated-4.0" path="WebResource.axd" verb="GET,DEBUG" type="System.Web.Handlers.AssemblyResourceLoader" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="PageHandlerFactory-Integrated-4.0" path="*.aspx" verb="GET,HEAD,POST,DEBUG" type="System.Web.UI.PageHandlerFactory" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="SimpleHandlerFactory-Integrated-4.0" path="*.ashx" verb="GET,HEAD,POST,DEBUG" type="System.Web.UI.SimpleHandlerFactory" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="WebServiceHandlerFactory-Integrated-4.0" path="*.asmx" verb="GET,HEAD,POST,DEBUG" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="HttpRemotingHandlerFactory-rem-Integrated-4.0" path="*.rem" verb="GET,HEAD,POST,DEBUG" type="System.Runtime.Remoting.Channels.Http.HttpRemotingHandlerFactory, System.Runtime.Remoting, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="HttpRemotingHandlerFactory-soap-Integrated-4.0" path="*.soap" verb="GET,HEAD,POST,DEBUG" type="System.Runtime.Remoting.Channels.Http.HttpRemotingHandlerFactory, System.Runtime.Remoting, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="svc-Integrated-4.0" path="*.svc" verb="*" type="System.ServiceModel.Activation.ServiceHttpHandlerFactory, System.ServiceModel.Activation, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="rules-Integrated-4.0" path="*.rules" verb="*" type="System.ServiceModel.Activation.ServiceHttpHandlerFactory, System.ServiceModel.Activation, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="xoml-Integrated-4.0" path="*.xoml" verb="*" type="System.ServiceModel.Activation.ServiceHttpHandlerFactory, System.ServiceModel.Activation, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="xamlx-Integrated-4.0" path="*.xamlx" verb="GET,HEAD,POST,DEBUG" type="System.Xaml.Hosting.XamlHttpHandlerFactory, System.Xaml.Hosting, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="aspq-Integrated-4.0" path="*.aspq" verb="GET,HEAD,POST,DEBUG" type="System.Web.HttpForbiddenHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="cshtm-Integrated-4.0" path="*.cshtm" verb="GET,HEAD,POST,DEBUG" type="System.Web.HttpForbiddenHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="cshtml-Integrated-4.0" path="*.cshtml" verb="GET,HEAD,POST,DEBUG" type="System.Web.HttpForbiddenHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="vbhtm-Integrated-4.0" path="*.vbhtm" verb="GET,HEAD,POST,DEBUG" type="System.Web.HttpForbiddenHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="vbhtml-Integrated-4.0" path="*.vbhtml" verb="GET,HEAD,POST,DEBUG" type="System.Web.HttpForbiddenHandler" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="ScriptHandlerFactoryAppServices-Integrated-4.0" path="*_AppService.axd" verb="*" type="System.Web.Script.Services.ScriptHandlerFactory, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="ScriptResourceIntegrated-4.0" path="*ScriptResource.axd" verb="GET,HEAD" type="System.Web.Handlers.ScriptResourceHandler, System.Web.Extensions, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35" preCondition="integratedMode,runtimeVersionv4.0" />
<add name="ASPClassic" path="*.asp" verb="GET,HEAD,POST" modules="IsapiModule" scriptProcessor="%IIS_BIN%asp.dll" resourceType="File" />
<add name="SecurityCertificate" path="*.cer" verb="GET,HEAD,POST" modules="IsapiModule" scriptProcessor="%IIS_BIN%asp.dll" resourceType="File" />
<add name="ISAPI-dll" path="*.dll" verb="*" modules="IsapiModule" resourceType="File" requireAccess="Execute" allowPathInfo="true" />
<add name="TraceHandler-Integrated" path="trace.axd" verb="GET,HEAD,POST,DEBUG" type="System.Web.Handlers.TraceHandler" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="WebAdminHandler-Integrated" path="WebAdmin.axd" verb="GET,DEBUG" type="System.Web.Handlers.WebAdminHandler" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="AssemblyResourceLoader-Integrated" path="WebResource.axd" verb="GET,DEBUG" type="System.Web.Handlers.AssemblyResourceLoader" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="PageHandlerFactory-Integrated" path="*.aspx" verb="GET,HEAD,POST,DEBUG" type="System.Web.UI.PageHandlerFactory" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="SimpleHandlerFactory-Integrated" path="*.ashx" verb="GET,HEAD,POST,DEBUG" type="System.Web.UI.SimpleHandlerFactory" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="WebServiceHandlerFactory-Integrated" path="*.asmx" verb="GET,HEAD,POST,DEBUG" type="System.Web.Services.Protocols.WebServiceHandlerFactory,System.Web.Services,Version=2.0.0.0,Culture=neutral,PublicKeyToken=b03f5f7f11d50a3a" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="HttpRemotingHandlerFactory-rem-Integrated" path="*.rem" verb="GET,HEAD,POST,DEBUG" type="System.Runtime.Remoting.Channels.Http.HttpRemotingHandlerFactory,System.Runtime.Remoting,Version=2.0.0.0,Culture=neutral,PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="HttpRemotingHandlerFactory-soap-Integrated" path="*.soap" verb="GET,HEAD,POST,DEBUG" type="System.Runtime.Remoting.Channels.Http.HttpRemotingHandlerFactory,System.Runtime.Remoting,Version=2.0.0.0,Culture=neutral,PublicKeyToken=b77a5c561934e089" preCondition="integratedMode,runtimeVersionv2.0" />
<add name="AXD-ISAPI-2.0" path="*.axd" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" responseBufferLimit="0" />
<add name="PageHandlerFactory-ISAPI-2.0" path="*.aspx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" responseBufferLimit="0" />
<add name="SimpleHandlerFactory-ISAPI-2.0" path="*.ashx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" responseBufferLimit="0" />
<add name="WebServiceHandlerFactory-ISAPI-2.0" path="*.asmx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-rem-ISAPI-2.0" path="*.rem" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-soap-ISAPI-2.0" path="*.soap" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness32" responseBufferLimit="0" />
<add name="svc-ISAPI-2.0-64" path="*.svc" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" />
<add name="AXD-ISAPI-2.0-64" path="*.axd" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" responseBufferLimit="0" />
<add name="PageHandlerFactory-ISAPI-2.0-64" path="*.aspx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" responseBufferLimit="0" />
<add name="SimpleHandlerFactory-ISAPI-2.0-64" path="*.ashx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" responseBufferLimit="0" />
<add name="WebServiceHandlerFactory-ISAPI-2.0-64" path="*.asmx" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-rem-ISAPI-2.0-64" path="*.rem" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" responseBufferLimit="0" />
<add name="HttpRemotingHandlerFactory-soap-ISAPI-2.0-64" path="*.soap" verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" responseBufferLimit="0" />
<add name="rules-64-ISAPI-2.0" path="*.rules" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" />
<add name="xoml-64-ISAPI-2.0" path="*.xoml" verb="*" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v2.0.50727aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv2.0,bitness64" />
<add name="CGI-exe" path="*.exe" verb="*" modules="CgiModule" resourceType="File" requireAccess="Execute" allowPathInfo="true" />
<add name="SSINC-stm" path="*.stm" verb="GET,HEAD,POST" modules="ServerSideIncludeModule" resourceType="File" />
<add name="SSINC-shtm" path="*.shtm" verb="GET,HEAD,POST" modules="ServerSideIncludeModule" resourceType="File" />
<add name="SSINC-shtml" path="*.shtml" verb="GET,HEAD,POST" modules="ServerSideIncludeModule" resourceType="File" />
<add name="TRACEVerbHandler" path="*" verb="TRACE" modules="ProtocolSupportModule" requireAccess="None" />
<add name="OPTIONSVerbHandler" path="*" verb="OPTIONS" modules="ProtocolSupportModule" requireAccess="None" />
<add name="ExtensionlessUrl-ISAPI-4.0_32bit" path="*." verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFrameworkv4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness32" responseBufferLimit="0" />
<add name="ExtensionlessUrlHandler-ISAPI-4.0_64bit" path="*." verb="GET,HEAD,POST,DEBUG" modules="IsapiModule" scriptProcessor="%windir%Microsoft.NETFramework64v4.0.30319aspnet_isapi.dll" preCondition="classicMode,runtimeVersionv4.0,bitness64" responseBufferLimit="0" />
<add name="ExtensionlessUrl-Integrated-4.0" path="*." verb="GET,HEAD,POST,DEBUG" type="System.Web.Handlers.TransferRequestHandler" preCondition="integratedMode,runtimeVersionv4.0" responseBufferLimit="0" />
<add name="StaticFile" path="*" verb="*" modules="StaticFileModule,DefaultDocumentModule,DirectoryListingModule" resourceType="Either" requireAccess="Read" />
</handlers>

上面可以看出，我们在iis管理器中看到的模块等配置信息就是来自这里，包括下面的处理程序映射，大家在iis里点击处理程序映射，其中显示的处理程序正式本配置文件

上面的处理程序是iis默认配置的，可以看出，iis为了能在多种环境下运行(包括不同的.net framework版本，不同的cpu版本)，以处理 *.aspx 为例，来分析一下这种设置。

在集成模式下，只对运行时版本进行了区分，因为托管代码会被编译为中间语言，中间语言在使用了时会根据运行机器的cpu型号编译为本地代码(nativa-code)。所以不需要有bitness64这样的配置。

在经典模式下，asp.net只是作为iis的一个ISAPI的扩展，而且不同的Framework版本和运行时版本已经编译好具体的aspnet_isapi.dll,所以使用时只需根据具体的运行机器的情况选择对应的dll即可。

iis配置存储区中的文件供整个iis支持的应用程序使用，对不同的本地环境做了适配，没有十足的把握和了解，尽量不要修改这个文件。

本文刊载的所有内容，包括文字、图片、音频、视频、软件、程序、以及网页版式设计等部门来源于互联网，版权均归原作者所有！本网站提供的内容服务于个人学习、研究或欣赏，以及其他非商业性或非盈利性用途，但同时应遵守著作权法及其他相关法律的规定，不得侵犯本网站及相关权利人的合法权利。
联系信息：邮箱aoxolcom@163.com或见网站底部。

THE END
